LC LED-Q760RGB4D: 3mm Super
Flux RGB LED Lamp (Cathode)
|
PRODUCT DESCRIPTION |
|
|
(1) RoHs
Compliant Part |
(5) Moisture
& UV Resistance Epoxy Len |
|
(2) Water Clear
3mm Round Len |
(6) Sun Light Viewable LED Lamp |
|
(3) Excellent
color mixing characteristics |
(7) Rugged design suitable for both indoor
& outdoor use |
|
(4) Common Anode |
|

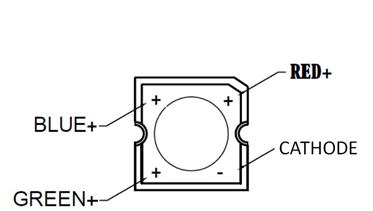

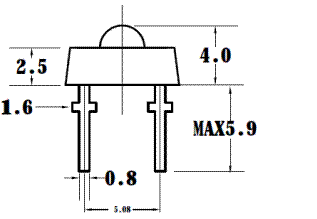

DEVICE DRAWING
Electrical and
Optical Characteristics at 20mA (Ta = 250C)
|
PARAMETER |
SYMBOL |
TEST CONDITIONS |
MIN. |
TYP. |
MAX. |
Units |
|
Forward Voltage |
VF |
Green, Blue |
3.0 |
|
3.6 |
V |
|
Red |
1.8 |
|
2.4 |
V |
||
|
Reverse Current |
IR |
VR = 5V |
|
|
10 |
mA |
|
Dominant |
lD |
Red |
|
630 |
|
nm |
|
Green |
|
530 |
|
nm |
||
|
Blue |
|
470 |
|
nm |
||
|
Luminous Intensity |
IV |
Red |
|
2,500 |
|
|
|
Green |
|
4,000 |
|
|
||
|
Blue |
|
2,000 |
|
|
||
|
Viewing Angle |
ɸR |
|
|
70 |
|
Degree |
Absolute Maximum
Rating (Ta = 250C)
|
PARAMETER |
SYMBOL |
MAXIMUM |
UNIT |
|
|
Power Dissipation |
PD |
Red |
80 |
mW |
|
Green,
Blue |
90,
85 |
mW |
||
|
DC Forward Current |
IF |
20 |
mA |
|
|
Peak Forward Current (1) |
IFP |
160 |
mA |
|
|
Reverse Voltage |
VR |
5 |
V |
|
|
Operating Temperature |
Topr |
-30
to +85 |
0C |
|
|
Storage Temperature |
Tstg |
-40
to +85 |
0C |
|
|
Soldering Temperature |
Tsol |
Max.
2600C for 5 second, |
0C |
|
(1)
Pulse conditions of 1/10 duty cycle and 10msec max. width

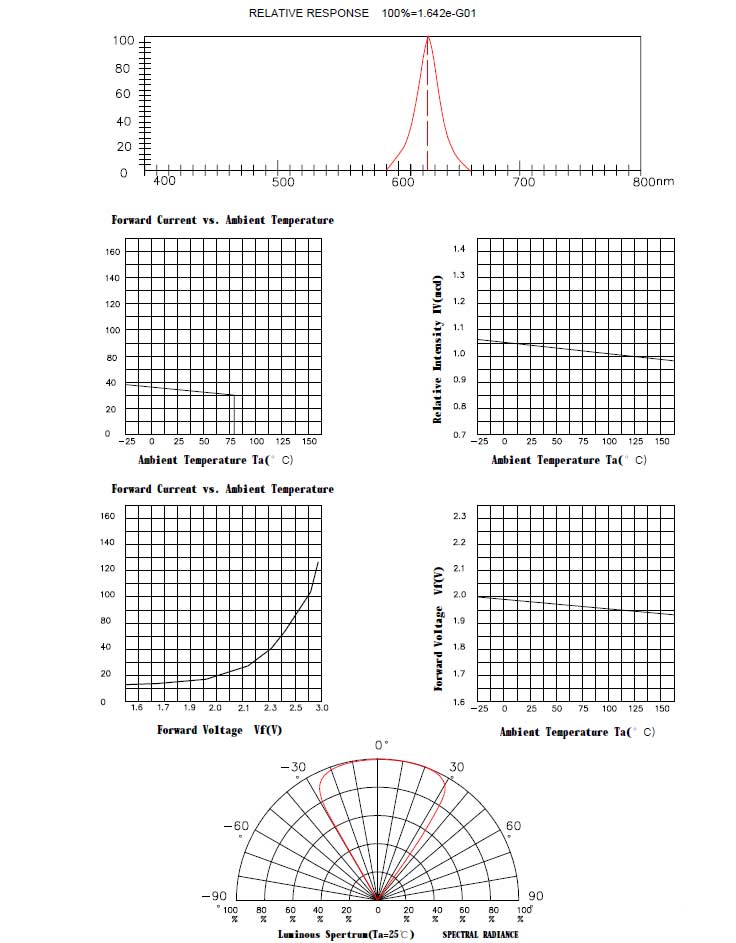

Electro-optical Curve
Characteristics – Red

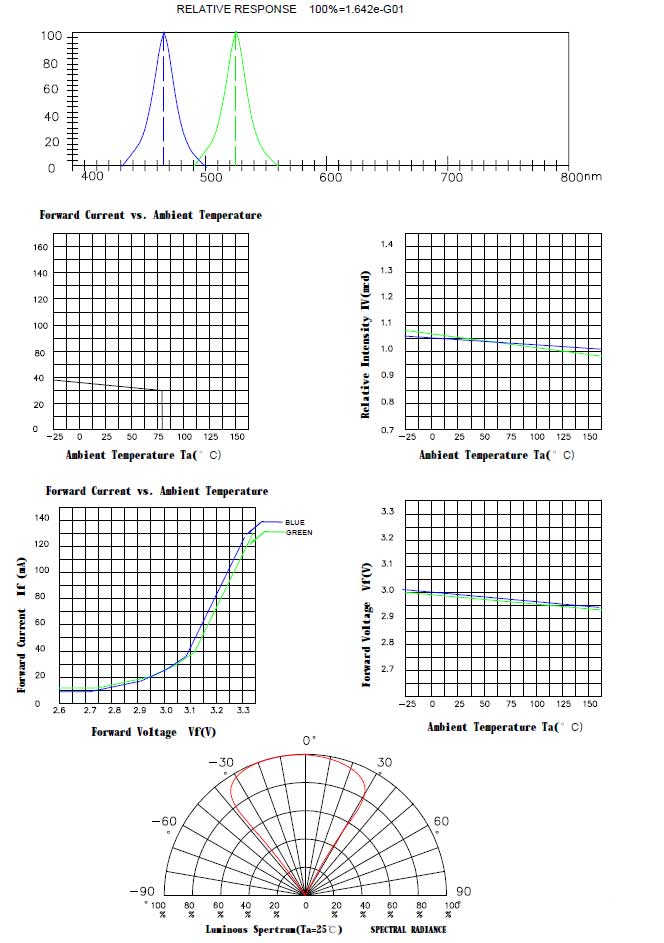

Electro-optical Curve
Characteristics – Blue & Green
|
LC LED Corporation |
